Product Details

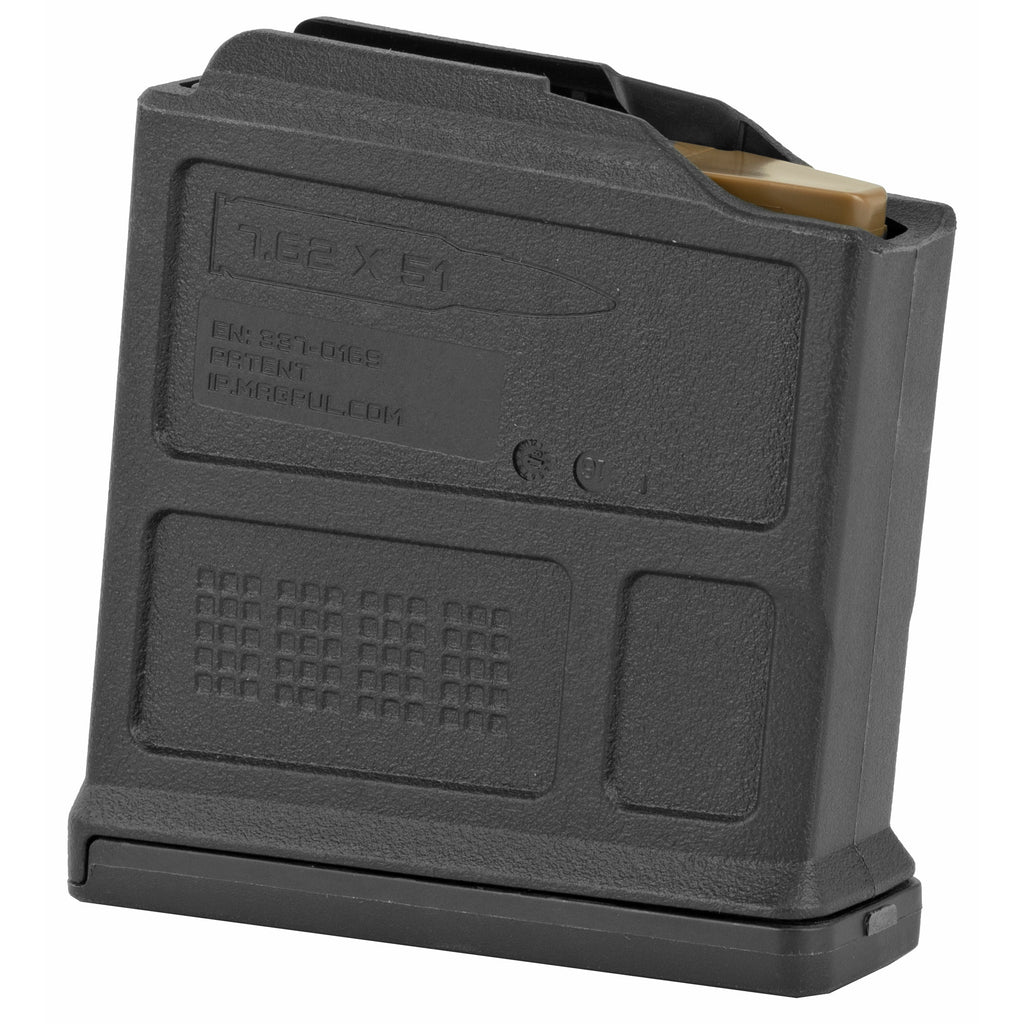

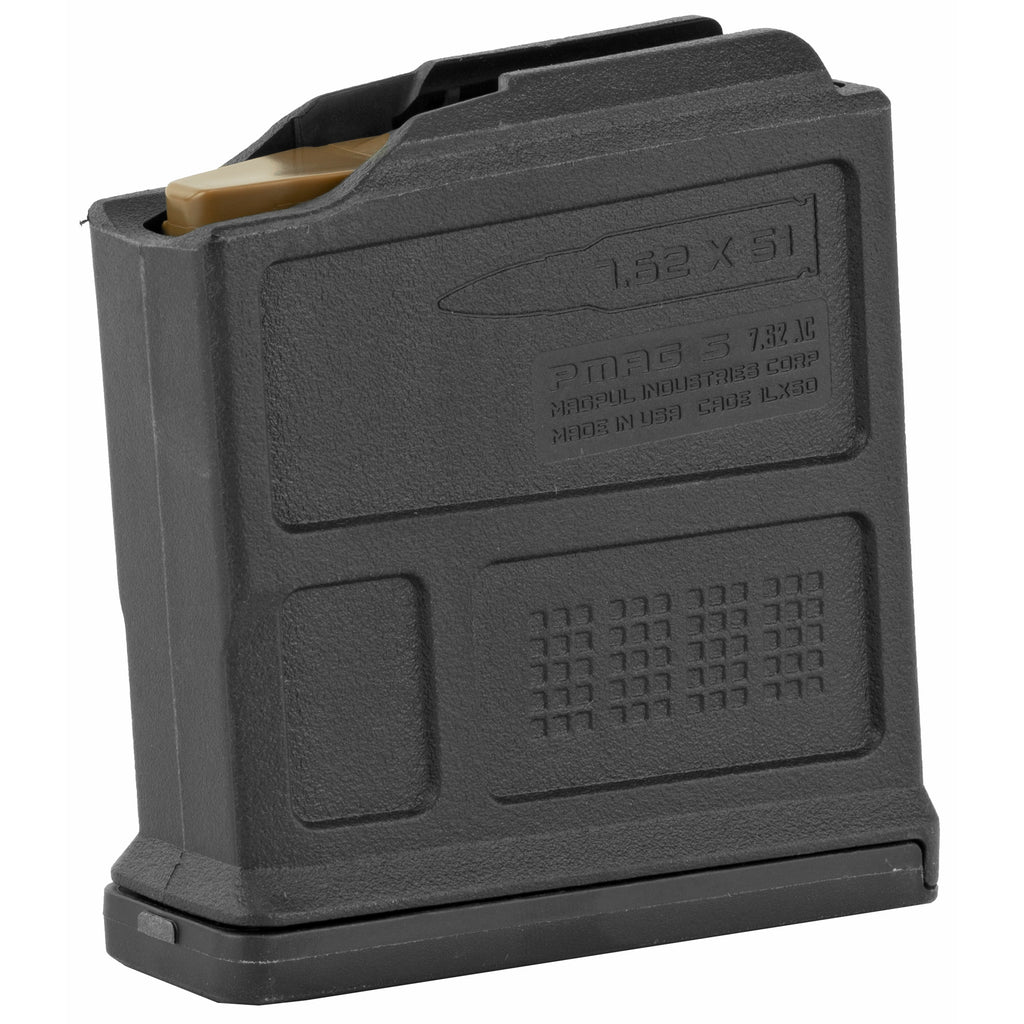

When concealment, weight, or magazine laws call for less capacity, the PMAG 5 7.62 AC AICS keeps your rifle balanced and your focus where it belongs. This true 5-round, AICS-compatible mag delivers the same GEN M3™ feeding geometry, stainless spring, and self-lubricating follower found in our other PMAGs in an intentionally compact form that preserves pouch fit and rifle ergonomics. Lightweight, serviceable, and engineered to feed reliably in short action bolt platforms, the PMAG 5 keeps you ready with minimal bulk. Made in the USA. Features 5-round capacity for .308 Win length cartridges Compatible with short action AICS-spec bottom metal GEN M3 enhancements include impact- and crush-resistant polymer construction, a long-life stainless-steel spring, and a self-lubricating follower for smooth, reliable feeding Low-profile ribs and aggressive front/rear texture for confident handling in all conditions Paint-pen dot matrix on the base for fast, in-field load identification Textured surfaces, ribbed design, and a flared, removeable floorplate for fast, positive handling Easy field servicing; disassembles quickly for cleaning RUGGED POLYMER BODY WITH AN IMPROVED FLOORPLATE Next-generation impact and crush-resistant polymer construction Flared and removable floorplate aids magazine handling and is easy to disassemble for maintenance ADVANCED FOLLOWER Self-lubricating follower for increased reliability Modifiable follower leg can be easily clipped to increase the capacity by one extra cartridge Includes a long-life stainless steel spring EASY IDENTIFICATION Utilize the paint pen dot matrix to easily identify magazines with different loadouts
Technical Specifications
| Collection |
Hunting Stocks and Accessories |
| Caliber |
7.62x51mm / .308 Winchester |
| Capacity |
5 Rounds |
| Weight |
3.1 oz. |
| Height |
, max 3.5 in. |
| Compatibility |
Compatible with short action AICS (Accuracy International Chassis Systems) pattern bottom metal and cartridges built on a 0.470" case head such as 7.62x51/.308 Winchester, 7mm-08 Remington, 6.5mm Creedmoor, .260 Remington, .243 Winchester, and others* |
| Other Specs |
*PLEASE NOTE: Magpul’s AICS-pattern PMAGs accommodate SAAMI-specification cartridges and WILL NOT work with C.I.P. or similar cartridge dimensions. Accepts a cartridge overall length of up to 2.86". Not compatible with smaller base diameter cartridges such as .220 Swift, .223 Remington, .300 AAC Blackout, etc. or larger short action magnums. Due to the wide variety and potential combinations of aftermarket receivers, stocks, chassis, and bottom metal that accept AICS pattern mags, minor fitting may be required. Not compatible with Accuracy International AE rifles or semi-auto platforms utilizing SR25/M110 pattern magazines. The Sig Cross rifles ship with a Magpul PMAG 5 7.62 AC that has a proprietary sled follower for optimized single-round loading through the ejection port. The standard PMAG 5 7.62 AC (MAG549) and PMAG 5 7.62 AC (MAG579) are compatible with the Sig Cross, and feeding performance will be the same from the Sig Cross OEM Magpul magazine or the standard Magpul PMAG 7.62 AC magazines. The original PMAG 5 7.62 AC magazine, identified by its green lock plate and follower, was optimized for the .308 Winchester based family of cartridges and is compatible with short action AICS-spec bottom metal, to include the Bolt |
| Action |
Magazine Well for the Hunter 700 Stock, and performed well with most non-.308 based cartridges in nearly all applications. Some three lug bolt action rifle platforms, such as the Ruger American Rifle®, presented some occasional feeding concerns when used with the standard green follower PMAG 5 7.62 AC magazine. We have made an inline change to a new design of spring and follower. The revised PMAG 5 7.62 AC magazine, easily identified with its brown lock plate and follower, has been optimized to ensure complete Magpul reliability with a broad range of calibers in the Ruger American Rifle® and other 3-lug bolt designs, while maintaining or improving the proven Magpul reliability in Remington® 700 footprint platforms and other 2-lug bolt action designs. For the Hunter American stock, we recommend using only the new, brown follower magazines, in calibers like 6.5 Creedmoor. All other actions, and the Ruger in .308, can use either version interchangeably. |
