Description
Product Details

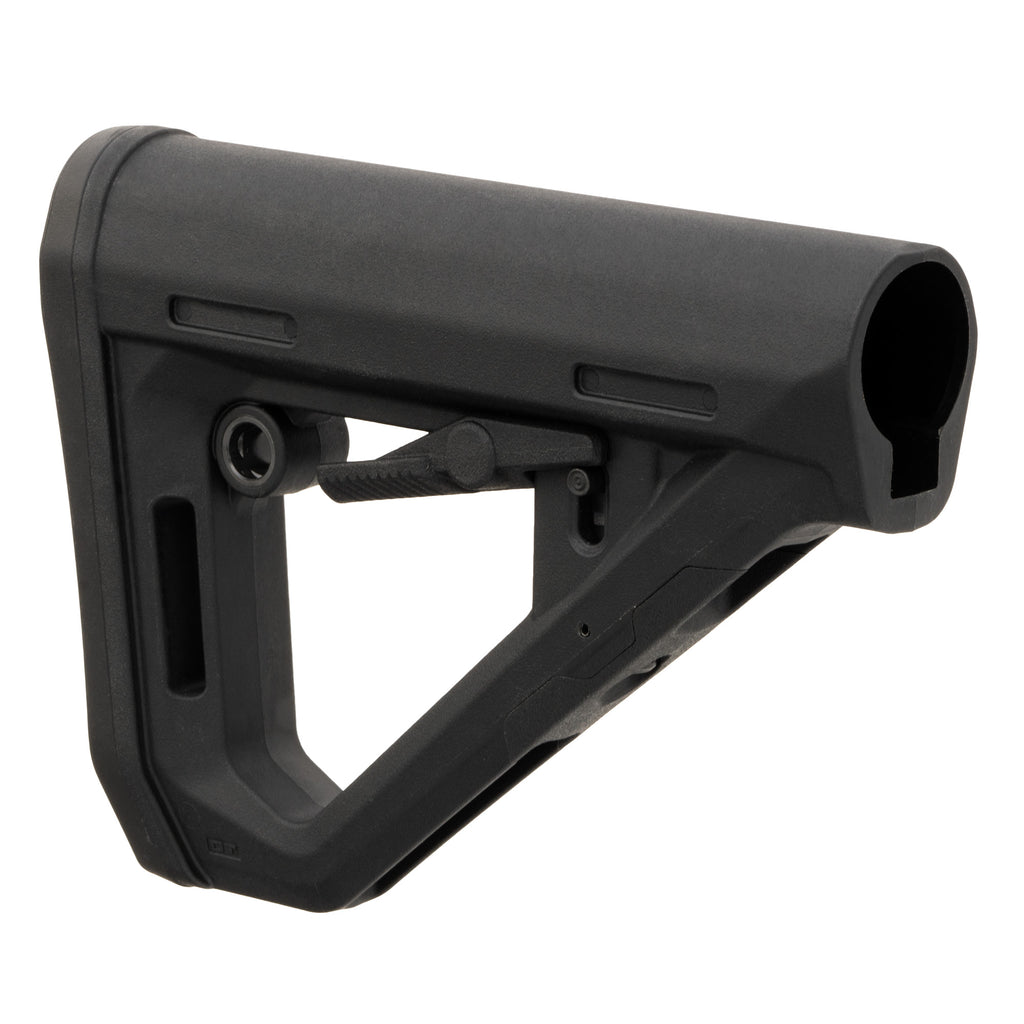

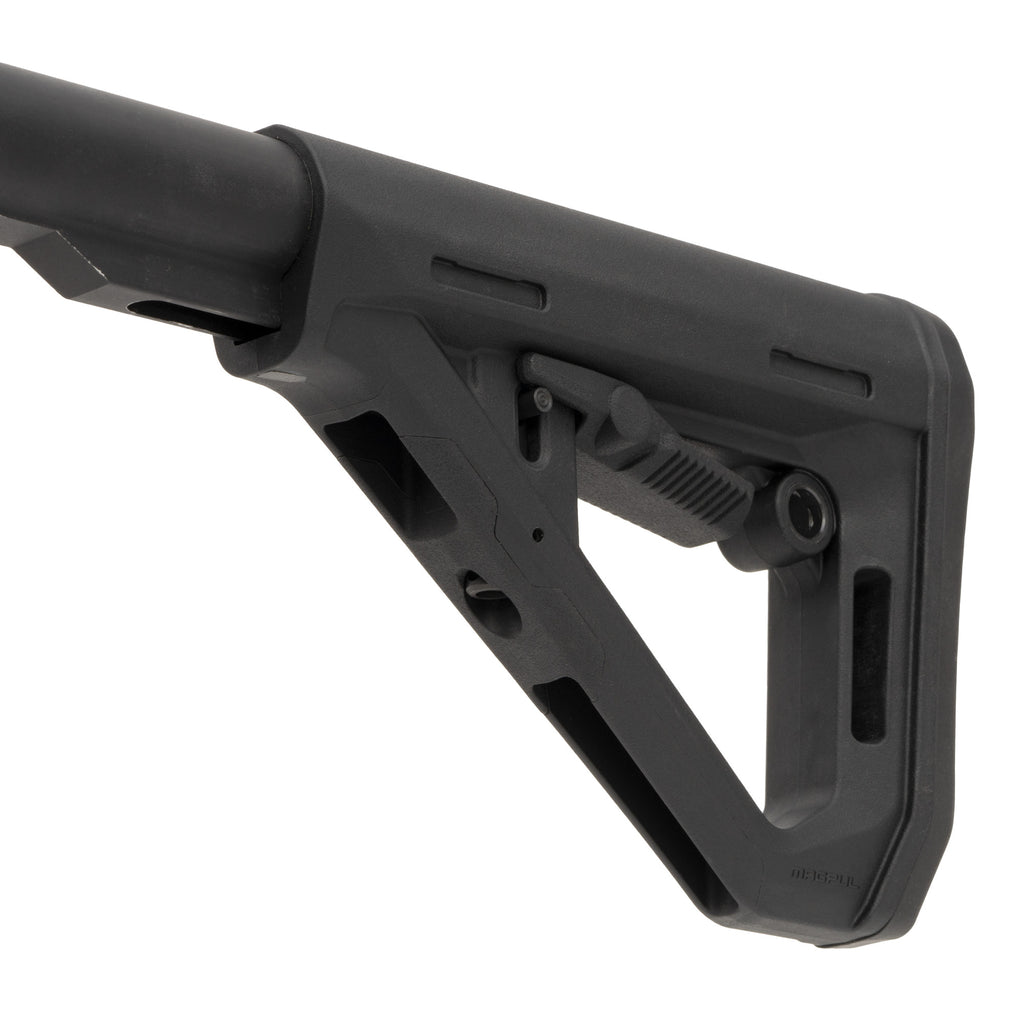

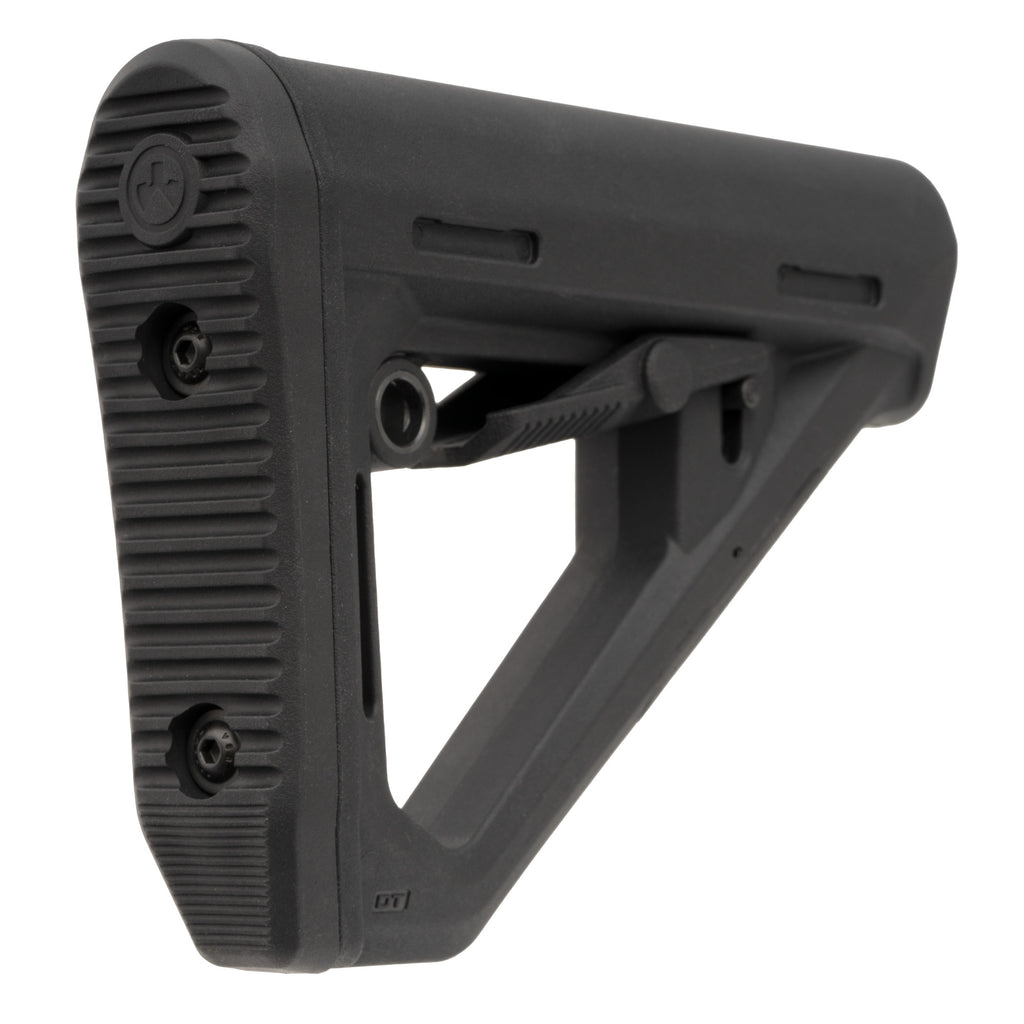

The DT Carbine Stock merges the footprint of our SL® and the optimized curvature of our CTR® stocks with its new dual tensioning (DT) technology, providing a significantly more stable platform that’s easy to adjust. The extra tight lockup minimizes movement between the stock’s lock pin and receiver extension for greater strength and security in a more rugged stock. Made in the USA. Features DT tech includes an auto-engaging friction lock that produces additional tension on the buffer tube, providing extra tight lockup and eliminating annoying wobble The single, ambidextrous control lever improves LOP placement, limits secondary movements, and increases durability without the need for a secondary lock New non-slip butt-pad with optimized curvature allows for easier shoulder transitions and a better fit when using body armor Sloping cheek weld combines a slim profile with user comfort Compatible with Magpul ASAP® , ASAP® QD and other receiver-mounted sling attachments Sling options include a rotation-limiting, integral push-button QD swivel sling mount and a rear 1.25" sling loop Compatible with our Magpul CTR Cheek Risers for use with a fully extended stock and on rifles without rear-facing charging handles THE INTERNAL DT AUTO-ENGAGING FRICTION LOCK PRODUCES ADDITIONAL TENSION AND THE AMBIDEXTROUS CONTROL LEVER IMPROVES LOP PLACEMENT WITHOUT THE NEED FOR A SECONDARY LOCK. THE RESULT IS TIGHTER LOCKUP ON THE BUFFER TUBE AND LESS STOCK MOVEMENT. UNIQUE, NON-SLIP BUTT-PAD THAT MATCHES THE FOOTPRINT OF THE SL LINE AND INCORPORATES THE OPTIMIZED CURVATURE FROM THE CTR FOR EASIER SHOULDER TRANSITIONS PLUS BETTER FIT WITH BODY ARMOR ENHANCED ERGONOMICS INCLUDE A SLOPING CHEEK WELD AND A SLIM STOCK PROFILE FOR USER COMFORT. ALSO INCLUDES COMB HEIGHT ADJUSTMENT WITH COMPATIBILITY WITH OUR MAGPUL CTR CHEEK RISERS . VERSATILE SLING MOUNTING OPTIONS WITH MAGPUL ASAP , ASAP QD , AND OTHER RECEIVER-MOUNT ATTACHMENT COMPATIBILITY, PLUS AN AMBIDEXTROUS INTEGRAL PUSH-BUTTON QD SWIVEL SLING MOUNT, AND A REAR 1.25" SLING LOOPTechnical Specifications
| Collection | 2026 NEW Colors, Collapsible Non-Storage AR Stocks |
|---|---|
| Platform | AR10, AR15, M4, M16, M110, SR25 |
| Compatibility | Mil-Spec sized carbine receiver extension tube (not included) from manufacturers such as Colt, LMT, Ruger, S&W, SIG, and others* LOP, M4 Collapsed ~10.5 in. LOP, M4 Extended ~13.8 in. |
| LOP Adjustment Range | 3.3 in. |
| Length, max | 7.0 in. |
| Height | , max 5.3 in. |
| Weight | 9.8 oz. |
| Weight, w/ receiver extension | ~13.6 oz. |
| Width, max | 1.6 in. |
| Other Specs | *NOTE : There are two basic sizes of M4 Carbine receiver extensions (buffer tubes): Mil-Spec and Commercial-Spec. The DT Carbine Stock will only fit with the common Mil-Spec tube. Specifications based on standard-length (flat-back) M4 Carbine receiver extension and may vary depending on tube manufacturer. Will not interfere with single-point slings attached to ASAP or ASAP QD receiver end plates. |
Additional Resources
MAG1377 Magpul DT Carbine Stock – Mil-Spec Installation Instructions
