Description
Product Details

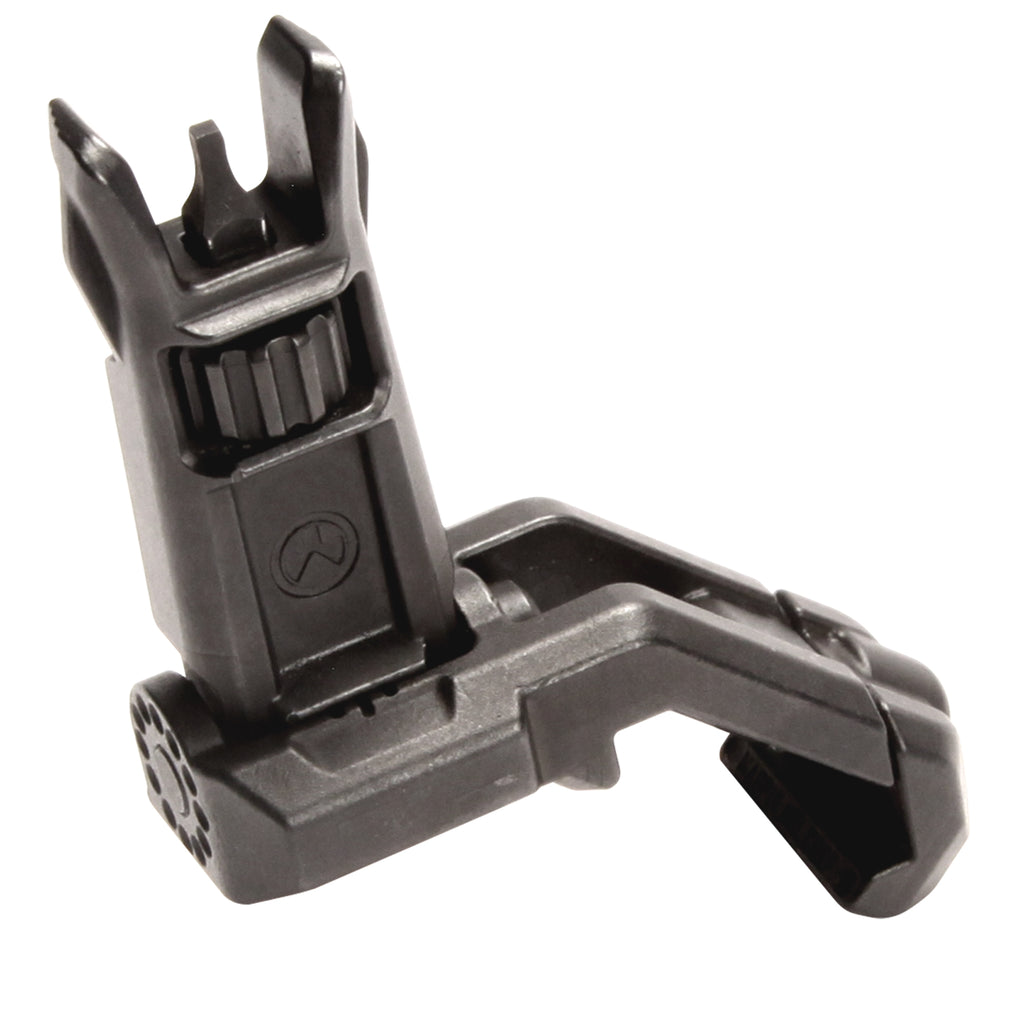

The MBUS Pro Offset Sight – Front is ready when your primary optic fails or for closer targeting situations. For M1913 Picatinny rail mounting and pairs with the MBUS Pro Offset Sight – Rear to provide a fully-featured iron sighting solution by rotating the rifle 45 degrees. Includes the same rugged, all-steel construction and dependable performance of our MBUS Pro Front sights. Made in the USA. Features The 45-degree offset supplements primary optics by mounting on existing M1913 Picatinny rails, providing a backup sighting solution and the ability to adapt to in-close firing situations All-steel construction with a QPQ nitride finish for extreme durability in all conditions Toolless elevation adjustment for on-the-fly flexibility as your situation changes Stows and deploys out of the line of sight of the primary optic and sits just 0.18" above the rail when stowed Stowed footprint of 1.9” below the rail and takes up only 0.66” of rail Detents secure the sight and the elevation knob when it’s stowed or deployed, so it stays in position and holds your zero during hard use Includes two adjustable sight post widths in one: a 0.06” Standard width for maximum visibility and a 0.04” Match width for increased precision STOWS AND DEPLOYS OUT OF THE LINE OF SIGHT OF THE PRIMARY OPTIC; SITS AT STANDARD AR HEIGHT OVER BORE AT 45-DEGREE ANGLE WHEN DEPLOYED AND ONLY 0.18” ABOVE THE RAIL WHEN STOWED THE ALL-STEEL CONSTRUCTION IS FINISHED WITH A QPQ SALT BATH NITRIDE PROCESS TO INCREASE SIGHT HARDNESS AND PROVIDE EXTREME RESISTANCE TO WEAR AND CORROSION STANDARD AND MATCH SIGHT-POST WIDTHS PROVIDE OPTIONS FOR MULTIPLE SHOOTING SCENARIOS TOOL-LESS ELEVATION ADJUSTMENT WITH RIBBED ELEVATION WHEELTechnical Specifications
| Collection | Offset Sights |
|---|---|
| Position | Front |
| Height above rail, stowed | ~0.18 in. |
| Length, stowed | 1.9 in. |
| Weight, w/ hardware | 1.8 oz. |
| Other Specs | Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail including receiver-height gas blocks. Only compatible with MBUS Pro OFFSET Rear sight, MAG526. ELEVATION ADJUSTMENT ~1 MOA (1.131"/100m) per click with a 14.5 in. sight radius ~0.7 MOA (0.820"/100m) per click with a 20 in. sight radius |
Additional Resources
MAG525 MBUS Pro Offset Sight – Front Installation Instructions
