Description
Product Details

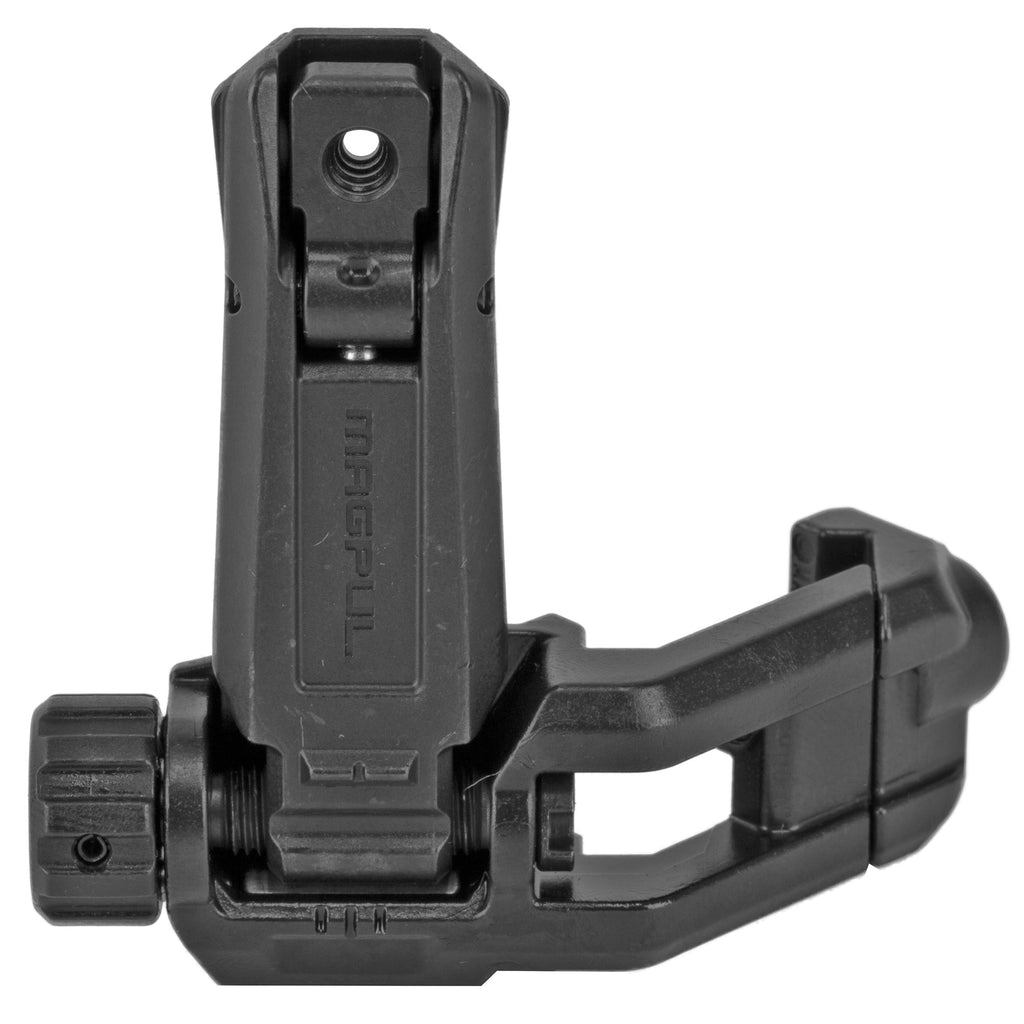

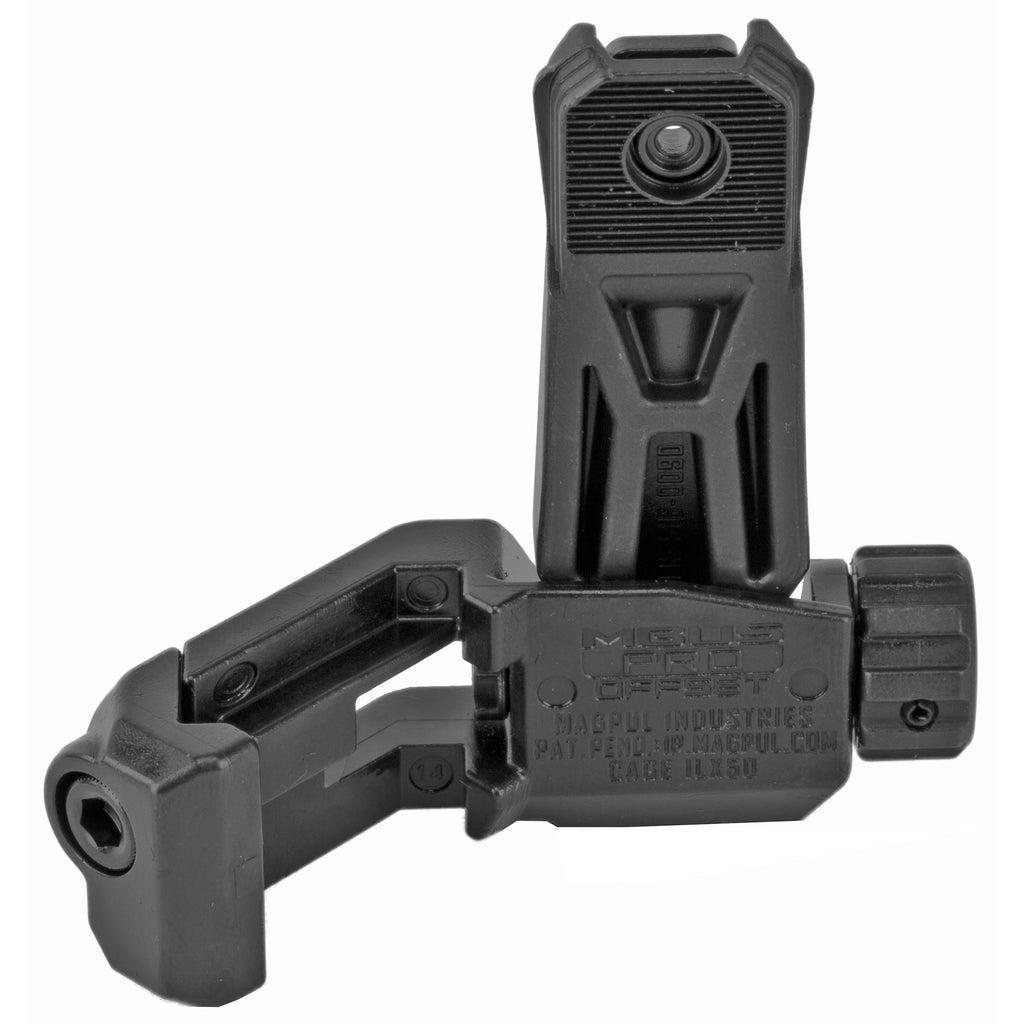

The MBUS Pro Offset Sight – Rear is ready when your primary optic fails or for closer targeting situations. For M1913 Picatinny rail mounting and pairs with the MBUS Pro Offset Sight – Front to provide a fully-featured iron sighting solution by rotating the rifle 45 degrees. Includes the same rugged, all-steel construction and dependable performance of our MBUS Pro Rear sights. Made in the USA. Features The 45-degree offset supplements primary optics by mounting on existing M1913 Picatinny rails, providing a backup sighting solution and the ability to adapt to in-close firing situations All-steel construction with a QPQ nitride finish for extreme durability in all conditions Toolless windage adjustment for on-the-fly flexibility as your situation changes Flip-up/down narrow aperture window allows a wide or narrow view for close-range shots (or low light situations) and longer distance shooting Stows and deploys out of the line of sight of the primary optic and sits just 0.18" above the rail when stowed Stowed footprint of 2” long and takes up only 0.66” of rail Detents secure the sight, windage knob, and flip-up/down aperture window when it’s stowed or deployed, so it stays in position and holds your zero during hard use ALL STEEL CONSTRUCTION Case hardened and finished with QPQ salt bath nitride for extreme resistance to wear and corrosion WINDAGE ADJUSTMENT KNOB No tools required SNAG-FREE, TUCKED AWAY PROFILE WHEN STOWED Positive detents in both the up and down positions LOW PROFILE WHEN DEPLOYED Standard AR height over bore when deployed, 45 degree offset to the right-hand side COVERS LESS THAN 0.66" OF TOP RAILTechnical Specifications
| Collection | Offset Sights |
|---|---|
| Position | Rear |
| Height above rail, stowed | ~0.18 in. |
| Length, stowed | 2.0 in. |
| Weight, w/ hardware | 2.0 oz. |
| Other Specs | Mounts on any MIL-STD-1913 Picatinny/STANAG 4694 rail. Only compatible with MBUS Pro OFFSET Front sight, MAG525. Small aperture dia.: 0.07 in. Large aperture dia.: 0.19 in. WINDAGE ADJUSTMENT ~0.5 MOA (0.566"/100m) per click with a 14.5" sight radius ~0.4 MOA (0.410"/100m) per click with a 20" sight radius |
Additional Resources
MAG526 MBUS Pro Offset Sight – Rear Installation Instructions
