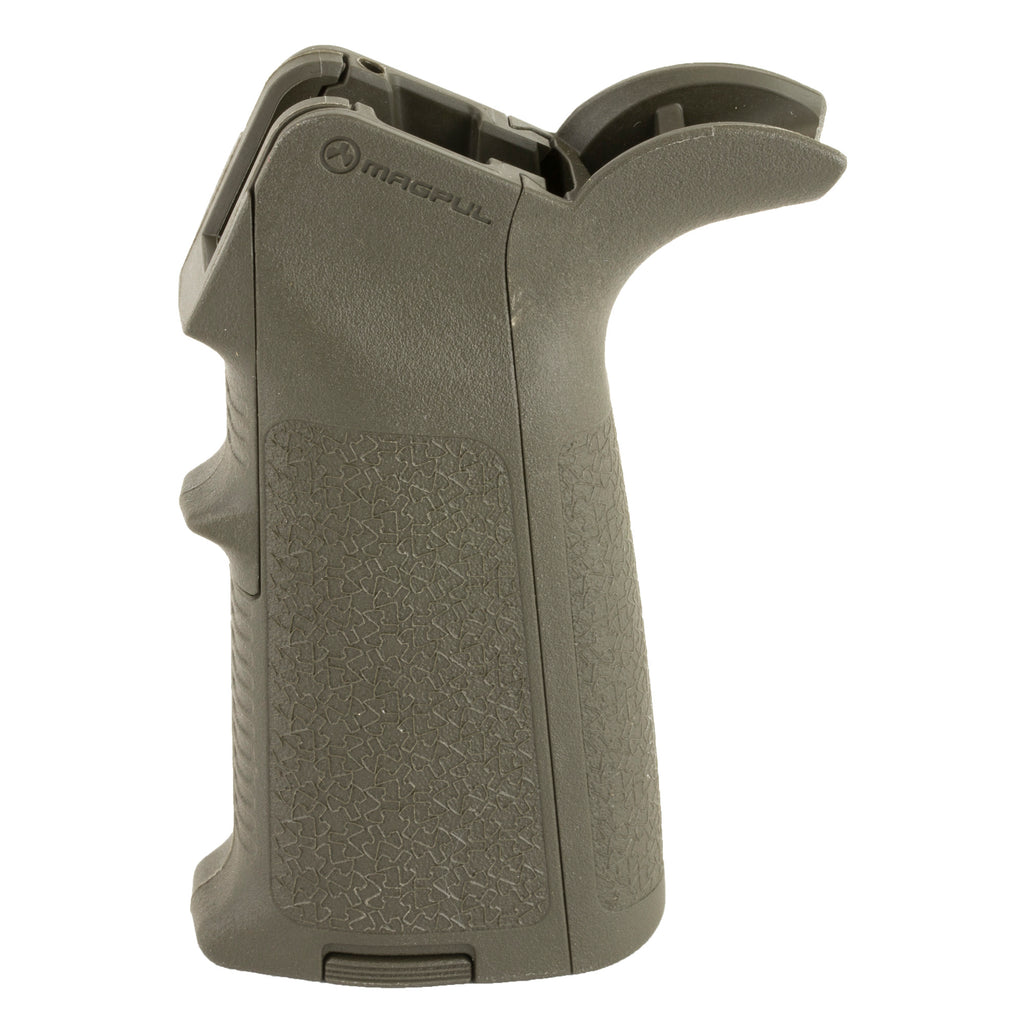

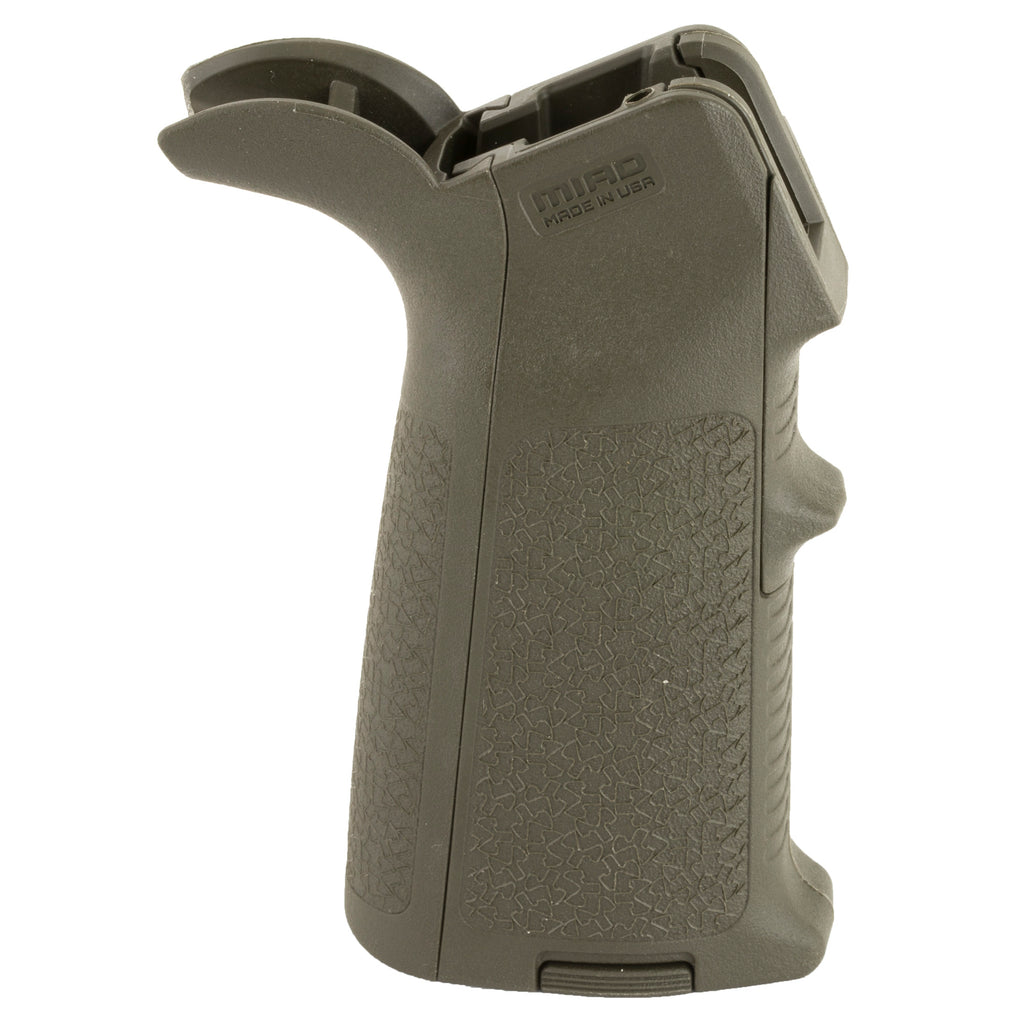

The MIAD TYPE 1 grip kit lets the user customize their grip size and profile for optimized comfort, control, and trigger finger placement. It includes three backstraps, including beavertail and no-beavertail options, and two frontstraps to allow the shooter to achieve a truly custom fit for this vital interface with their firearm. It also includes MIAD/MOE® Lube Bottle Core and accepts other Magpul Storage Cores (sold separately). The MIAD TYPE 1 is optimized for AR15-pattern firearms but can also be used on many AR10-pattern firearms. NSN: MAG520-BLK 1005-01-651-2138 Made in the USA. Features The MIAD TYPE 1 version is compatible with AR15/M4 (and many AR10 platforms), providing a comfortable, customizable grip with internal storage capacity Includes three backstraps with both beavertail and no-beavertail options in different thicknesses to match shooter preference Includes two frontstraps to allow preference between a finger ridge or no-ridge profile for a customized fit Traditional 25-degree grip angle familiar to AR15 shooters and conducive to shooting longer LOP firearms Aggressive texture for positive control in all conditions Includes MIAD/MOE Lube Bottle Core and accepts other optional Magpul Storage Cores DESIGNED TO IMPROVE ERGONOMICS AGGRESSIVE TEXTURE FOR POSITIVE WEAPON CONTROL INTERCHANGABLE FRONT AND REAR STRAPS FOR PERSONALIZED FIT Each kit includes three backstrap sizes (S,M,L), two frontstraps (A1 and A2 style), lubrication bottle core, and dual-drive mounting screw COMES WITH REMOVABLE LUBRICATION BOTTLE FOR STORAGE CORE Custom waterproof storage of batteries (AA/AAA or CR123A) or spare bolt/firing pin (AR15/M4) is available with optional Storage CoresTechnical Specifications
| Platform | AR10, AR15, M4, M16, M110, SR25 |
|---|---|
| Grip Angle | 25 degrees |
| Height, receiver to bottom | 4.0 in. |
| Thickness, max | 1.2 in. |
| Other Specs | * NOTE : This TYPE 1 Kit fits all AR15/M4's as well as many 7.62x51 variants such as the Aero Precision M5 308, CMMG MK3, CORE Rifle Systems CORE30, HK 417/MR762A1, LWRCI REPR, Mega Arms MATEN, POF P-308, Ruger SR-762, and SIG716. The TYPE 2 Kit uses taller backstraps for optimized fit with certain 7.62x51 receivers such as the Armalite AR-10A/B/T, DPMS LR308, KAC SR25, LaRue OBR, LMT .308 MWS, Palmetto PA10, and S&W M&P10. In general, the TYPE 1 Kit will fit most all 7.62x51 AR lower receivers but there may or may not be a gap between the backstrap's 'beavertail' and the receiver. This gap is purely aesthetic and will not affect function. |
