Product Details

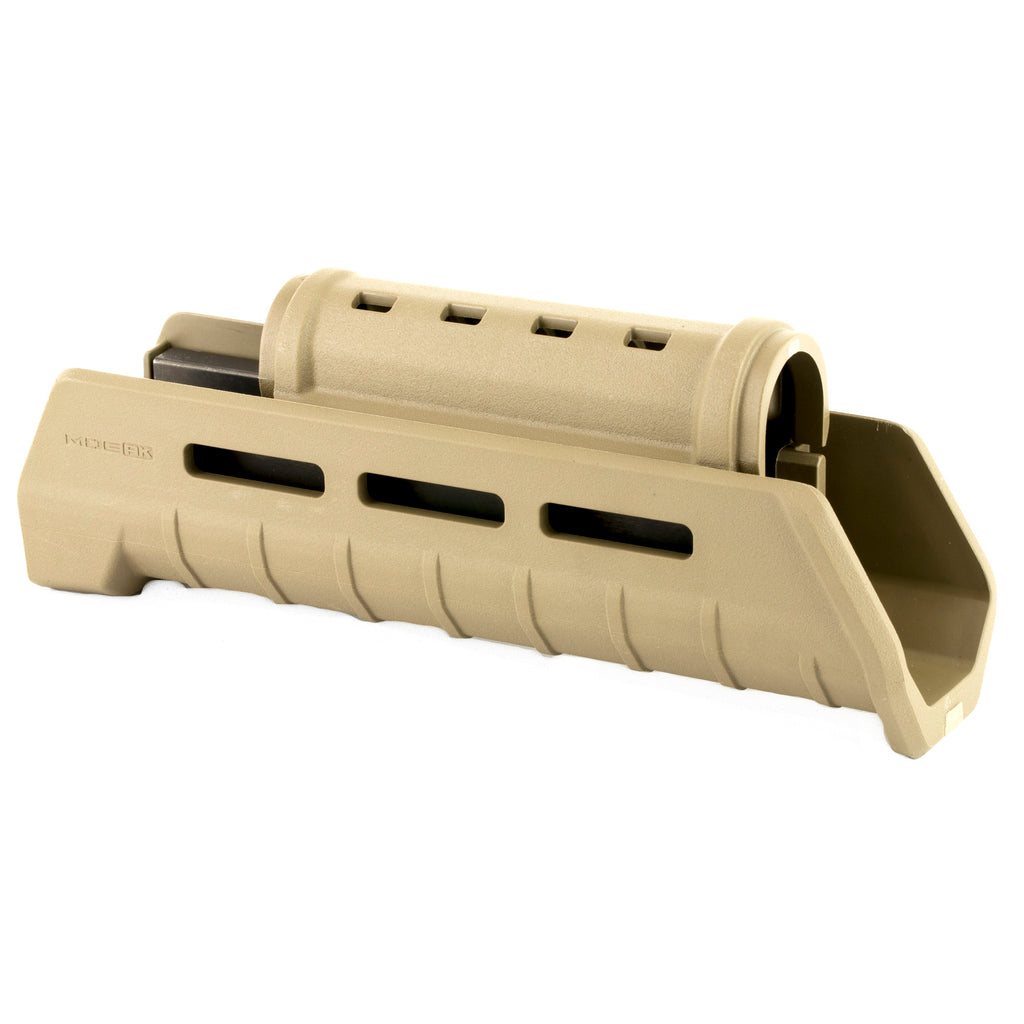

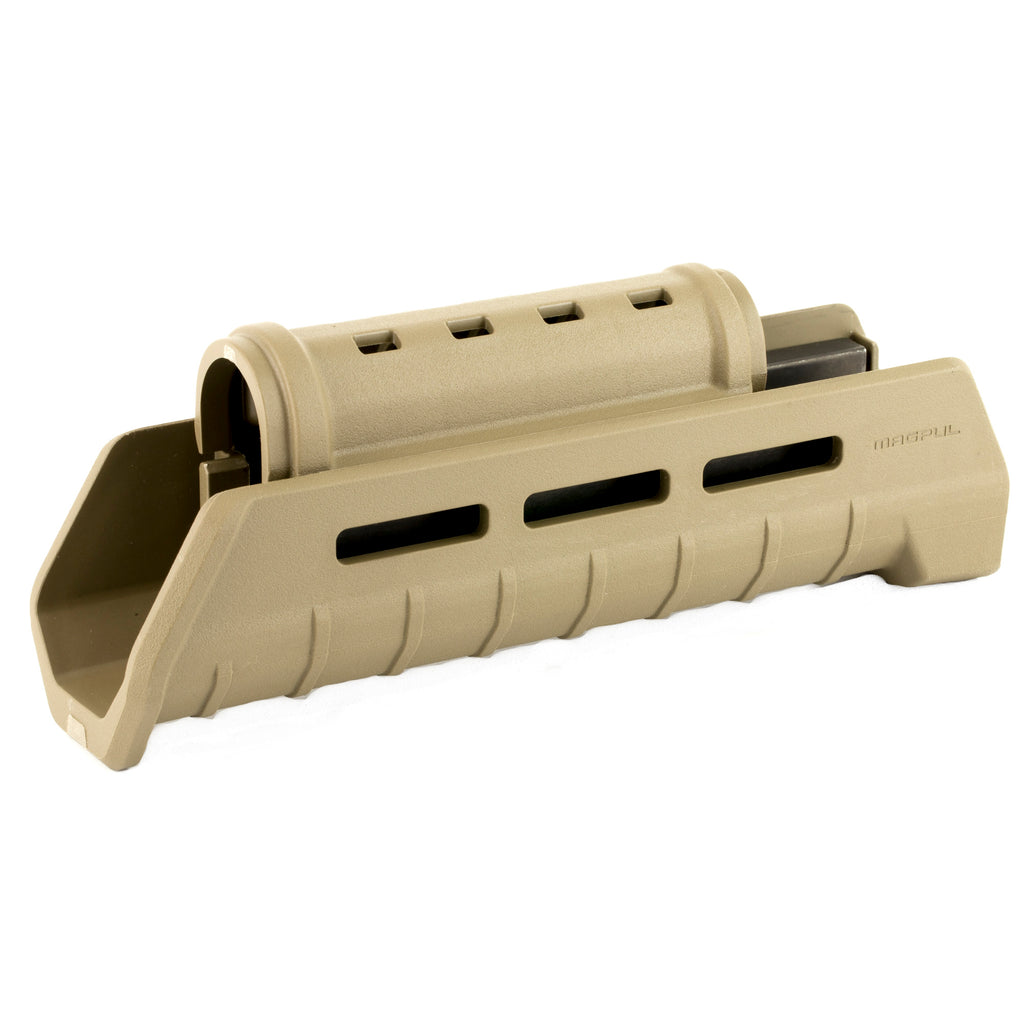

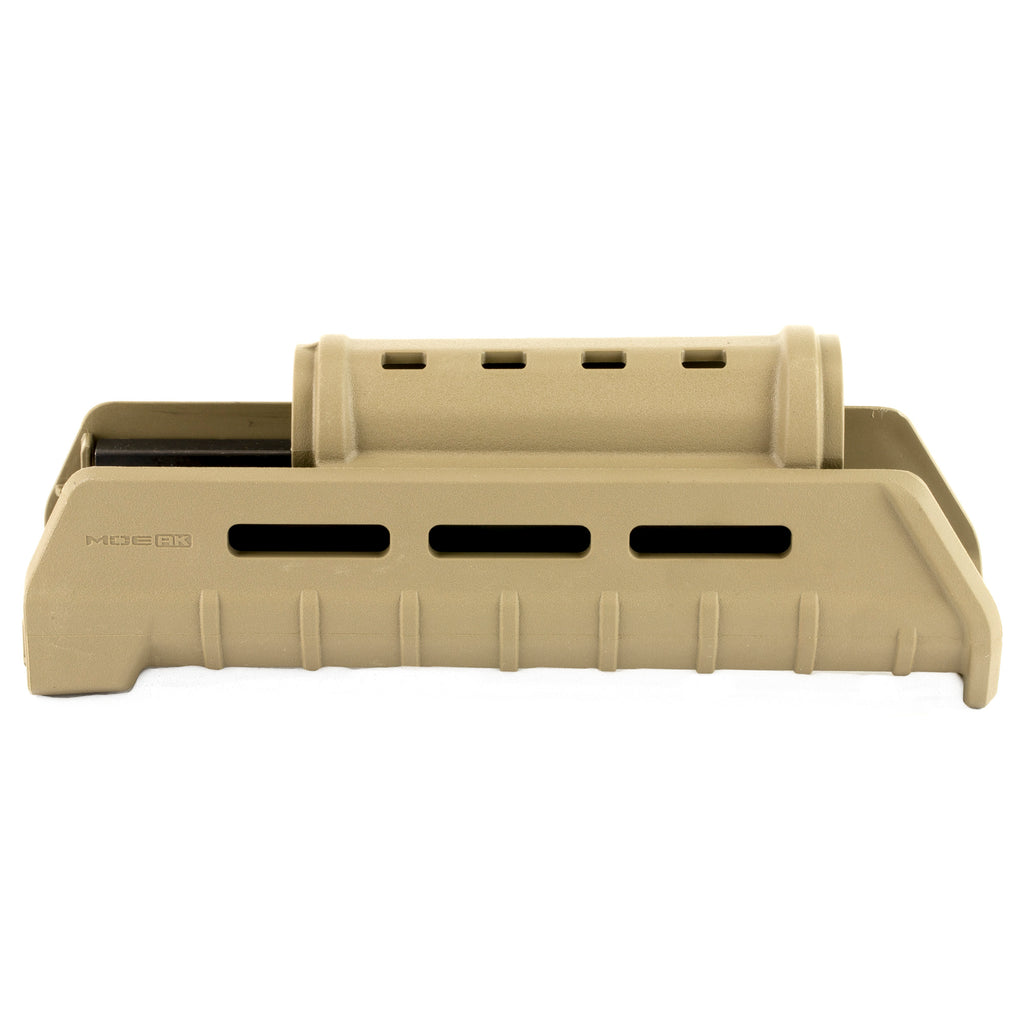

The MOE AK Hand Guard fits Kalashnikov-pattern firearms to provide M-LOK accessory mounting and improved handling and control without extra weight. It includes a matching gas tube cover to maintain traditional AK appearance and aesthetics. The front lip, side extensions and stainless-steel heat shield all work together to protect the support hand during firing. Only compatible with AK-style firearms without a front sling loop on the hand guard retainer plate. Hand Guard counts as one US compliance part for 922(r). Made in the USA. Features Fits Kalashnikov-pattern firearms for better ergonomics and M-LOK accessory mounting; compatible with firearms without a sling loop on front hand guard retainer plate Improves handling and control of the firearm Includes nine M-LOK slots located at two, six, and ten o'clock for accessory mounting Compatible with the UltiMAK™ gas tube rail for optics mounting Stainless-steel heat shield, front lip and side extensions protect support hand during firing Includes a matching vented gas tube cover for stamped pattern rifles for consistent appearance and aesthetics Durable Magpul polymer for long service life without extra weight COMPATIBLE WITH HAND GUARD RETAINERS WITHOUT SLING LOOP Easy to install utilizing existing front hand guard retaining cap WITHOUT sling loop* M-LOK SLOTS FOR ACCESSORY ATTACHMENT Slots at the three, six, and nine o'clock positions for mounting direct-attach M-LOK accessories or M-LOK 1913 Picatinny rail sections EXTENDED LENGTH FOR MODERN SHOOTING TECHNIQUES Reinforced, heat-resistant polymer construction Front lip and long side extensions shields hand from hot barrel while providing increased gripping surface VENTED GAS TUBE COVER FITS STAMPED AK PATTERN RIFLES Includes replacement polymer Top Cover Compatible with UltiMAK Optics Mount top cover STAINLESS STEEL HEAT SHIELD Integral, black oxide coated stainless steel heat shield
Technical Specifications
| Platform |
AK / AKM |
| Length, max |
7.8 in. |
| Width |
1.8 in. |
| Weight, w/ Top Cover |
7.8 oz. |
| Height |
, w/o Top Cover 1.9 in. |
| Compatibility |
Stamped receiver AK-47/AKM/AK-74 wooden or plastic hand guards* |
| Weight |
of Top Cover 1.1 oz. Accepts factory cleaning rod. *NOTE: The MOE AK Hand Guard is a direct replacement for standard AK-47 / AKM / AK-74 pattern hand guards and utilizes the existing hand guard retaining cap WITHOUT sling loop. However, for those weapons with a retaining cap sling loop the MOE AK Hand Guard may be utilized if the loop is removed. Due to the wide range of tolerances of your typical AK, minor fitting may be required. Not compatible with Yugo pattern rifles, RPK style receivers, or milled receivers. **Specifications based on factory configuration. |
Additional Resources
MAG619 MOE AK Hand Guard Installation Instructions
M-LOK Description and Install
Compliance Notices
