Product Details

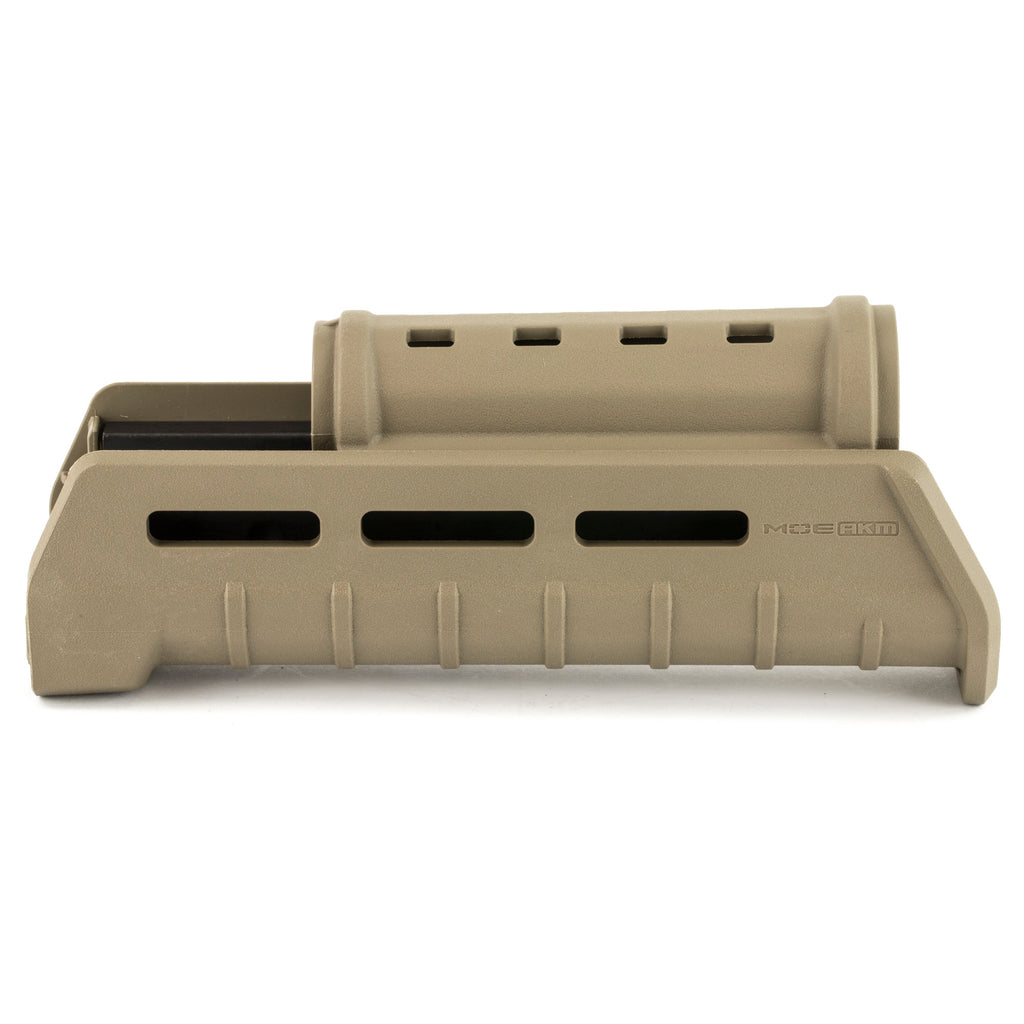

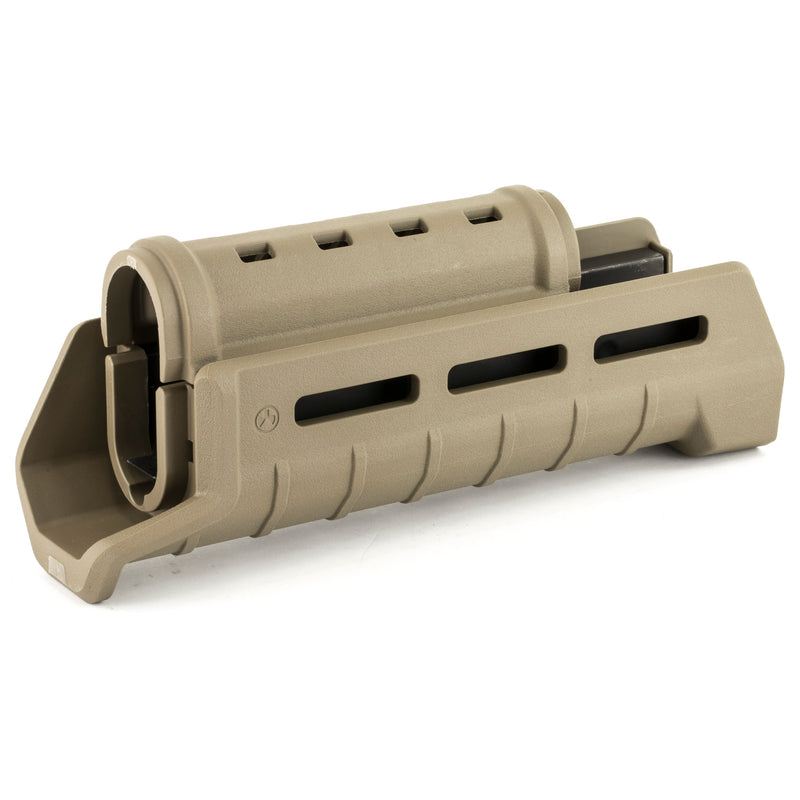

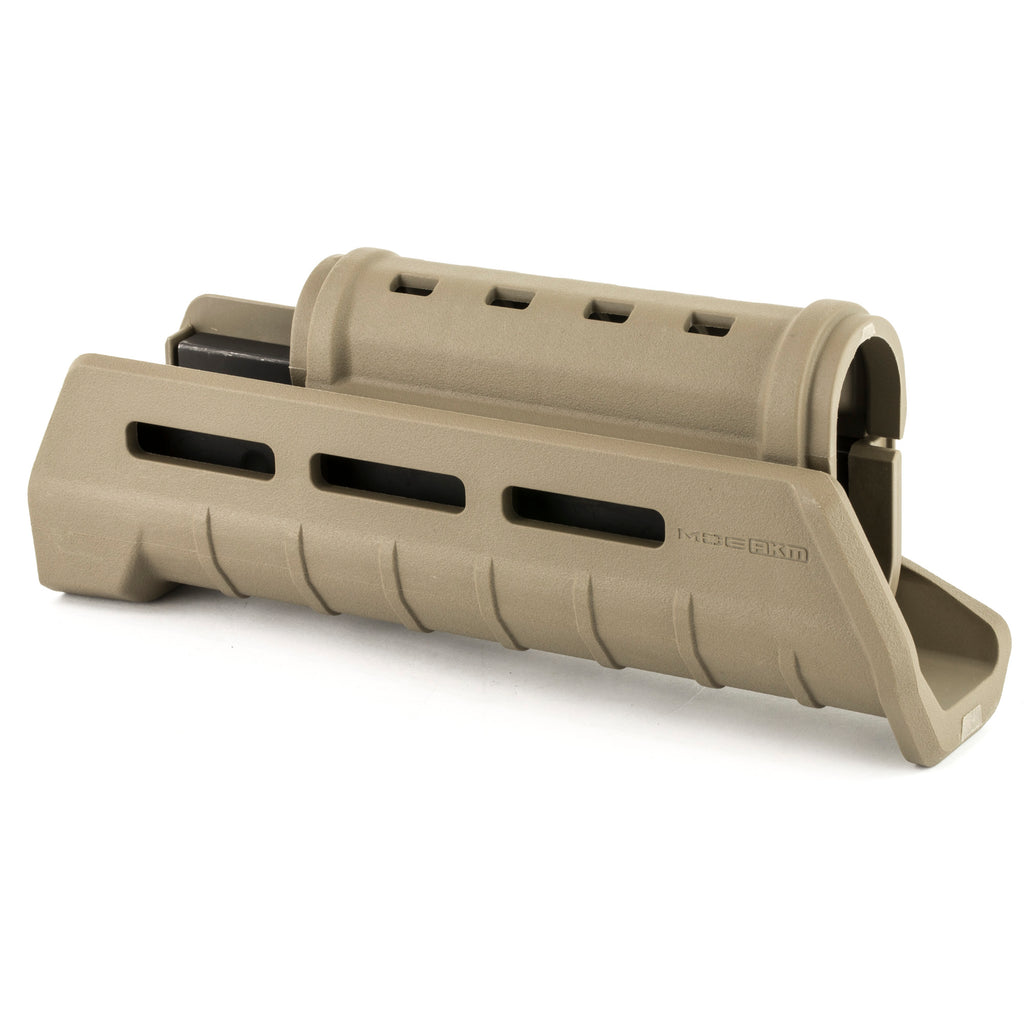

The MOE AK Hand Guard fits Kalashnikov-pattern firearms to provide M-LOK accessory mounting and improved handling and control without extra weight. The left-side cutout accommodates hand guard retainer plates with an integral sling loop. It includes a matching gas tube cover to maintain traditional AK appearance and aesthetics. The front lip, side extensions and stainless-steel heat shield all work together to protect the support hand during firing. Hand Guard counts as one US compliance part for 922(r). Made in the USA. Features Fits Kalashnikov-pattern firearms for better ergonomics and M-LOK accessory mounting; the left-side cutout accommodates hand guard retainer plate with an integral sling loop Improves handling and control of the firearm Includes seven M-LOK slots at two, six, and ten o'clock for accessory mounting Compatible with the UltiMAK™ gas tube rail for optics mounting Stainless-steel heat shield, front lip and side extensions protect support hand during firing Includes a matching vented gas tube cover for stamped pattern rifles for consistent appearance and aesthetics Durable Magpul polymer for long service life without extra weight M-LOK FOR ACCESSORIES Slots at the three, six, and nine o'clock positions for mounting direct-attach M-LOK accessories or M-LOK 1913 Picatinny rail sections RUGGED DESIGN Reinforced, heat-resistant polymer construction Front lip and side extension shields hand from hot barrel while still allowing use of factory sling loop INCLUDES TOP COVER Includes replacement polymer Top Cover Compatible with UltiMAK Optics Mount top cover SAFE HANDLING Easy to install utilizing existing front hand guard retaining cap with sling loop* STAINLESS STEEL HEAT SHIELD Integral, black oxide coated stainless steel heat shield
Technical Specifications
| Platform |
AK / AKM |
| Length, max |
7.3 in. |
| Width |
1.8 in. |
| Weight, w/ Top Cover |
7.4 oz. |
| Height |
, w/o Top Cover 1.9 in. |
| Compatibility |
Original stamped receiver AK-47/AKM/AK-74 wooden or plastic hand guards* |
| Other Specs |
*NOTE: The MOE AKM Hand Guard is a direct replacement for standard AK-47/AKM/AK-74 pattern hand guards and utilizes the existing hand guard retaining cap with (or without) sling loop. Due to the wide range of tolerances of your typical AK, minor fitting may be required. Not compatible with Yugo pattern rifles, RPK style receivers, or milled receivers. Specifications based on factory configuration. |
| Weight |
of Top Cover 1.1 oz. |
Additional Resources
MAG620 MOE AKM Hand Guard Installation Instructions
M-LOK Description and Install
Compliance Notices
