Product Details

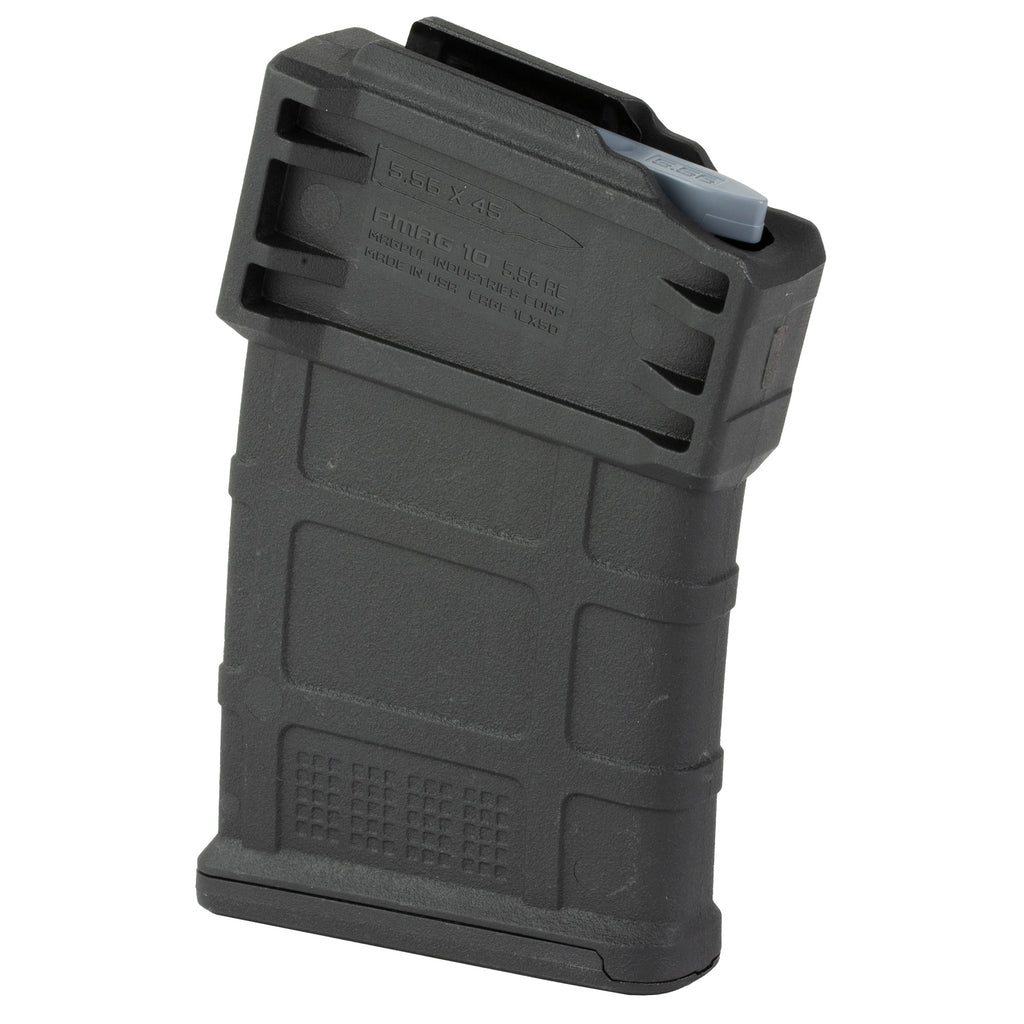

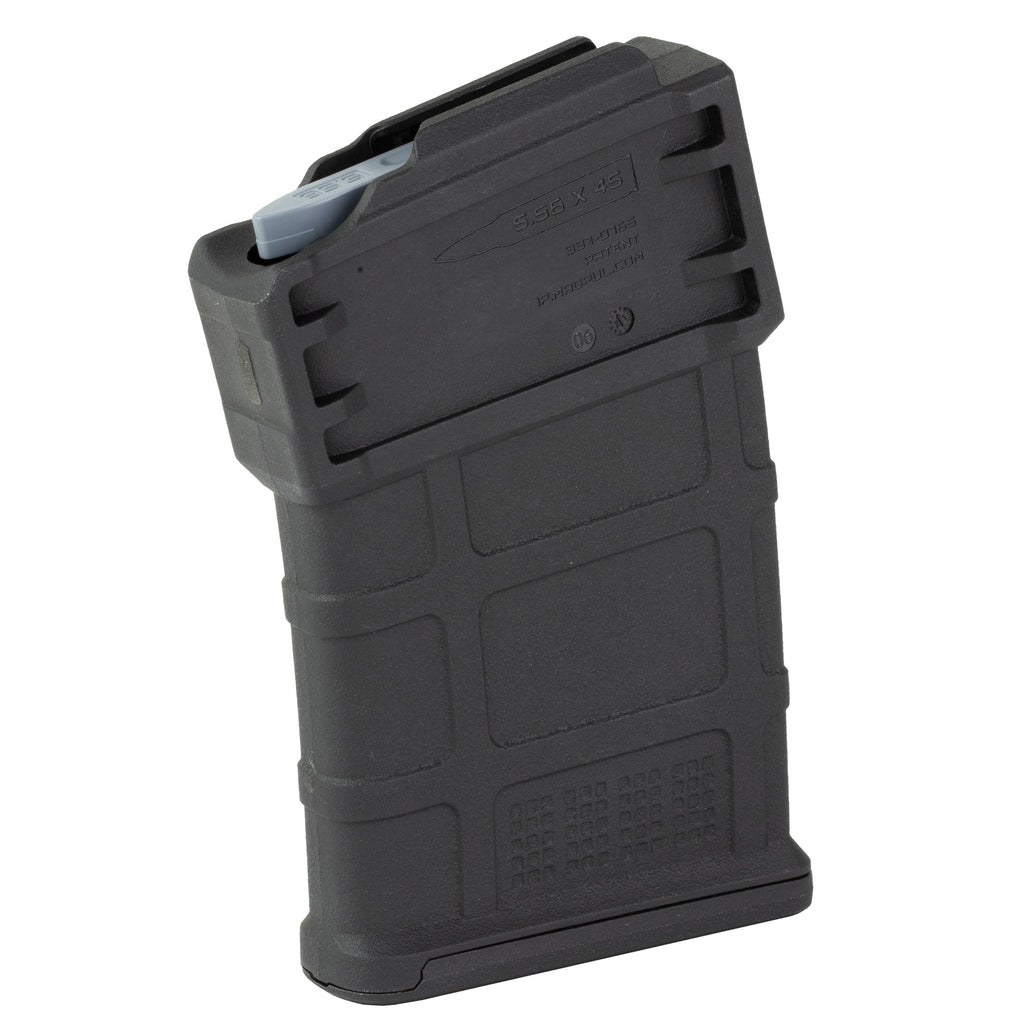

The PMAG 10 5.56 AC is a polymer 5.56x45 NATO (.223 Rem) magazine designed for short action AICS pattern bottom metal, including the Bolt Action Magazine Well for the Magpul Hunter family of stocks. Incorporating GEN M3® technology, it provides consistent, reliable feeding every time. It also includes offset feed lip geometry to maximize bolt face engagement, guaranteeing reliable feeding and solving the bolt face issue common to other AICS-pattern magazines for 5.56 based cartridges. It was designed from the ground up to solve the challenges of feeding 5.56/.223 in your AICS bolt guns. Made in the USA. Features 10-round capacity for 5.56x45 NATO (.223 Rem) ammunition Compatible with short action AICS-spec bottom metal, to include Magpul Hunter stocks with the Magpul Bolt Action Magazine Well GEN M3 features include impact- and crush-resistant polymer construction, a long-life stainless-steel spring, and a self-lubricating follower for smooth, reliable feeding Low-profile ribs, aggressive front and rear texture, and a flared floorplate for confident handling in all conditions Paint-pen dot matrix on the base for fast, in-field load identification Easy field servicing; disassembles quickly for cleaning GEOMETRY THAT ENSURES RELIABILITY Offset feed lip geometry designed to maximize bolt face engagement and optimize reliability Single stack, constant-curve internal geometry with 10-round capacity Self-lubricating follower for increased reliability RUGGED POLYMER CONSTRUCTION Next-generation impact and crush - resistant polymer construction Long-life stainless-steel spring Paint pen dot matrix panels on the bottom of the body to allow for visual identification
Technical Specifications
| Collection |
Hunting Stocks and Accessories |
| Caliber |
5.56x45mm / .223 Remington |
| Capacity |
10 |
| Weight |
2.71 oz. |
| Height |
, max 5.01 in. |
| Length, max |
3.05 in. |
| Width |
0.97 in. Top, 0.88 in. Base Compatible with short action AICS-pattern bottom metal and 5.56x45 NATO/.223 Remington cartridges Accepts cartridge overall length (COAL) of up to 2.39 in. Use with other calibers such as .300 AAC Blackout is not recommended Due to the feed geometry dictated by the .223 Remington cartridge and the Ruger American overall receiver length, this magazine is not recommended for use in the Ruger American rifle. While it will be possible to insert the magazine into Ruger American rifles that accept AICS-pattern magazines, function and reliability may be heavily compromised. |
