Product Details

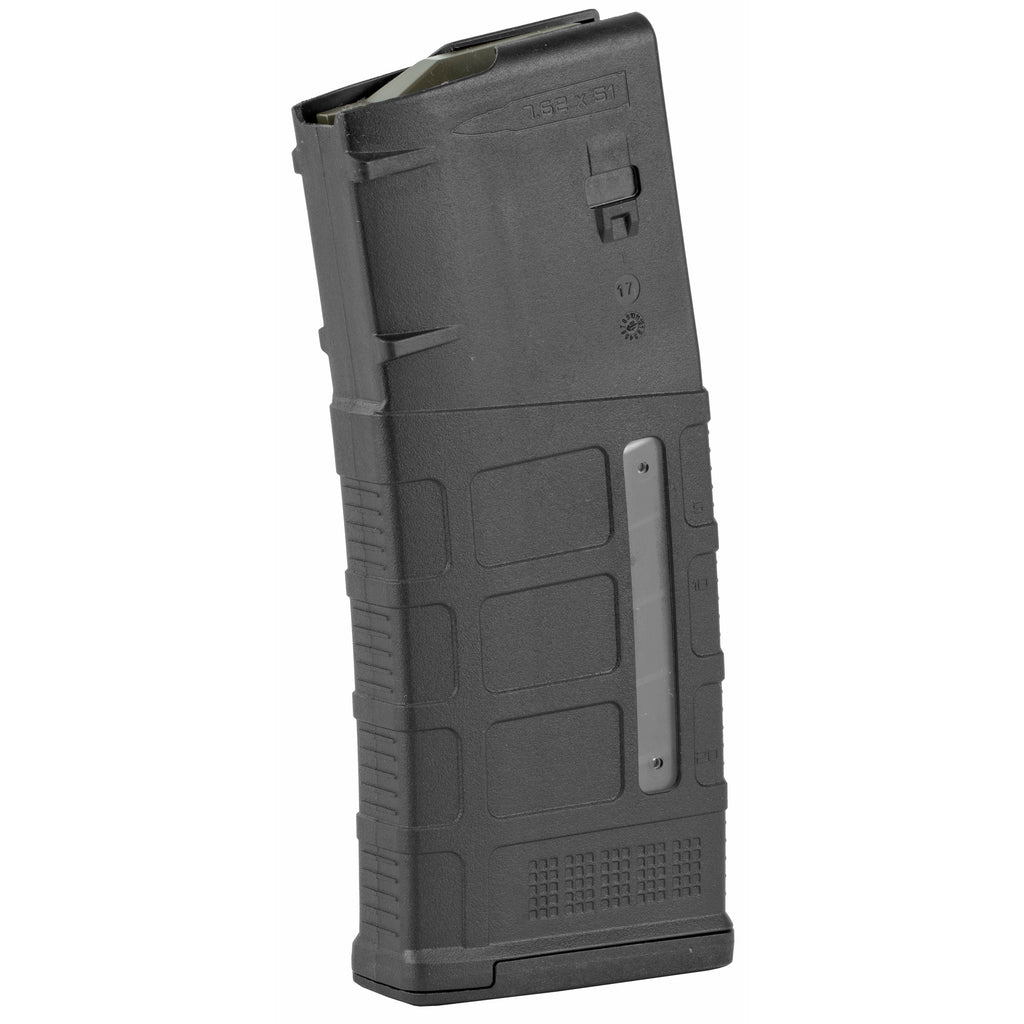

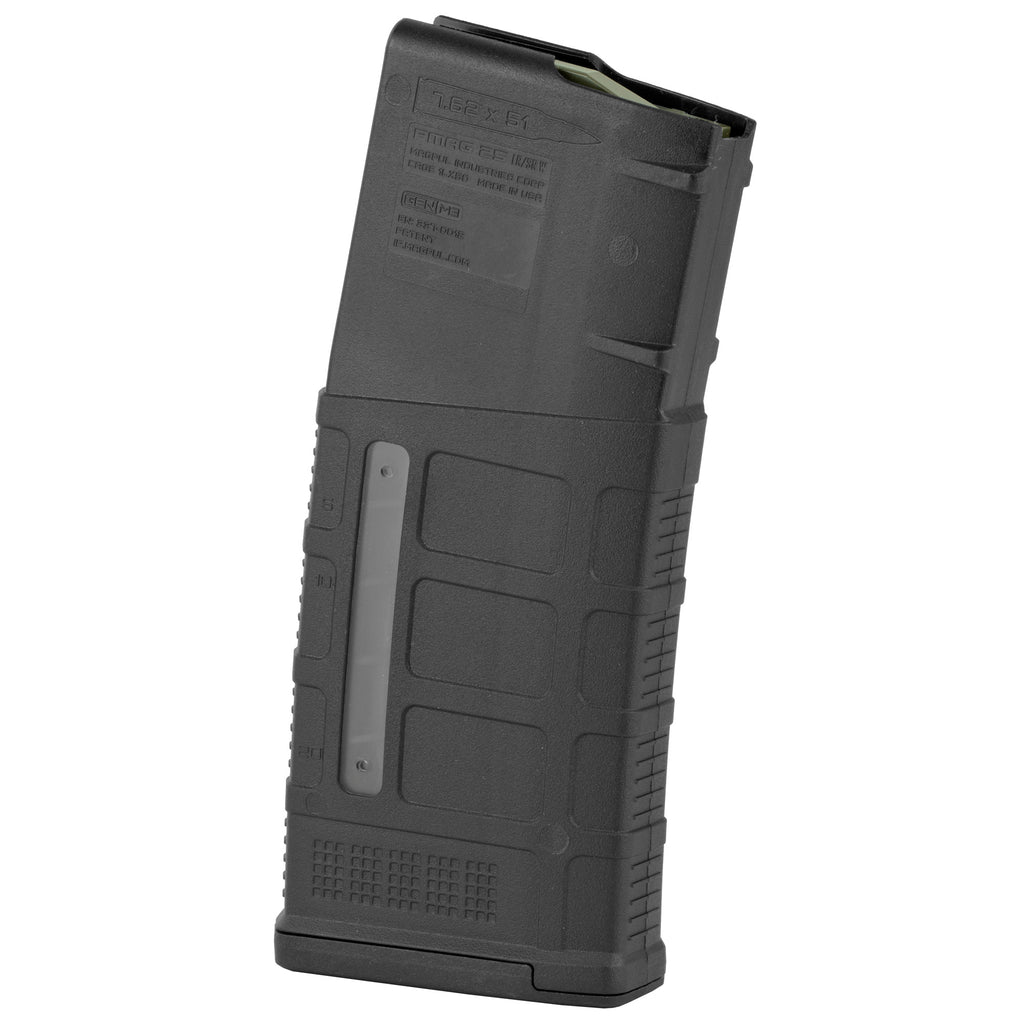

The PMAG 25 LR/SR GEN M3 Window is a lightweight, highly-reliable 25-round magazine for SR25/M110 pattern rifles chambered in 7.62×51 NATO (.308 Winchester). It pairs Magpul’s proven constant-curve geometry and anti-tilt follower with impact-resistant polymer construction and translucent MagLevel™ windows so you can see remaining rounds at a glance. Made in the USA. NSN: MAG292-BLK 1005-01-718-3977 Features True 25-round capacity for SR25 / M110 pattern rifles chambered in 7.62×51 NATO (.308 Winchester) Anti-tilt, self-lubricating follower, high-quality stainless spring, and constant-curve internal geometry for smooth, reliable feeding Impact- and crush-resistant polymer body built for long service life and field abuse Anti-glare translucent MagLevel windows on both sides and painted indicator on the spring for quick visual round-count checks Flared floorplate, ribbed gripping surface, and aggressive front/rear texture for positive handling and fast mag changes Paint-pen dot matrix on the bottom panel enables rapid in-field load identification Designed for SAAMI-spec ammunition and optimized for reliable function in SR25/M110 platforms 25-ROUND RELIABILITY 25-round reliability and no stoppages Anti-glare translucent MagLevel windows on both sides of the body and painted indicator on the spring allow for easy determination of rounds remaining EASY IDENTIFICATION AND HANDLING Use the paint pen dot matrix to easily identify your different loads when it's crunch time Flared floorplate, ribbed gripping surface, and new aggressive front and rear texture for positive magazine handling ENGINEERED TO FEED Anti-tilt, self-lubricating follower for increased reliability, a high-quality stainless steel spring, and constant-curve internal geometry for smooth feeding
Technical Specifications
| Caliber |
7.62x51mm / .308 Winchester |
| Platform |
AR10, M110, SR25 |
| Capacity |
25 rounds |
| Weight |
6.5 oz. |
| Length, max |
7.75 in. |
| Compatibility |
Armalite AR-10A, Colt LE901-16S, CORE Rifle Systems CORE30, JP Enterprises LRP-07, KAC SR25, LaRue OBR, Les Baer .308, LMT .308 MWS, LWRCI REPR, Mega Arms MATEN, Noveske Gen III N6, POF P-308, Ruger SR-762, S&W M&P10, SIG716, and others* |
| Other Specs |
Optimized for use with SAAMI-spec 7.62x51/.308 Winchester ammunition *NOTE: Compatible with older model Bushmaster .308 ORC, Remington R-25, and DPMS LR308 rifles, but not optimized for bolt lock functionality with newer models based on the DPMS GII design. NOT compatible with Armalite AR-10B, Springfield Armory M1A, Rock River Arms LAR8, FN SCAR 17S, PTR-91, HK417 or any other rifles that utilize M14, FN FAL, or HK 91/G3 patterned magazines. |
